Hex head set screw

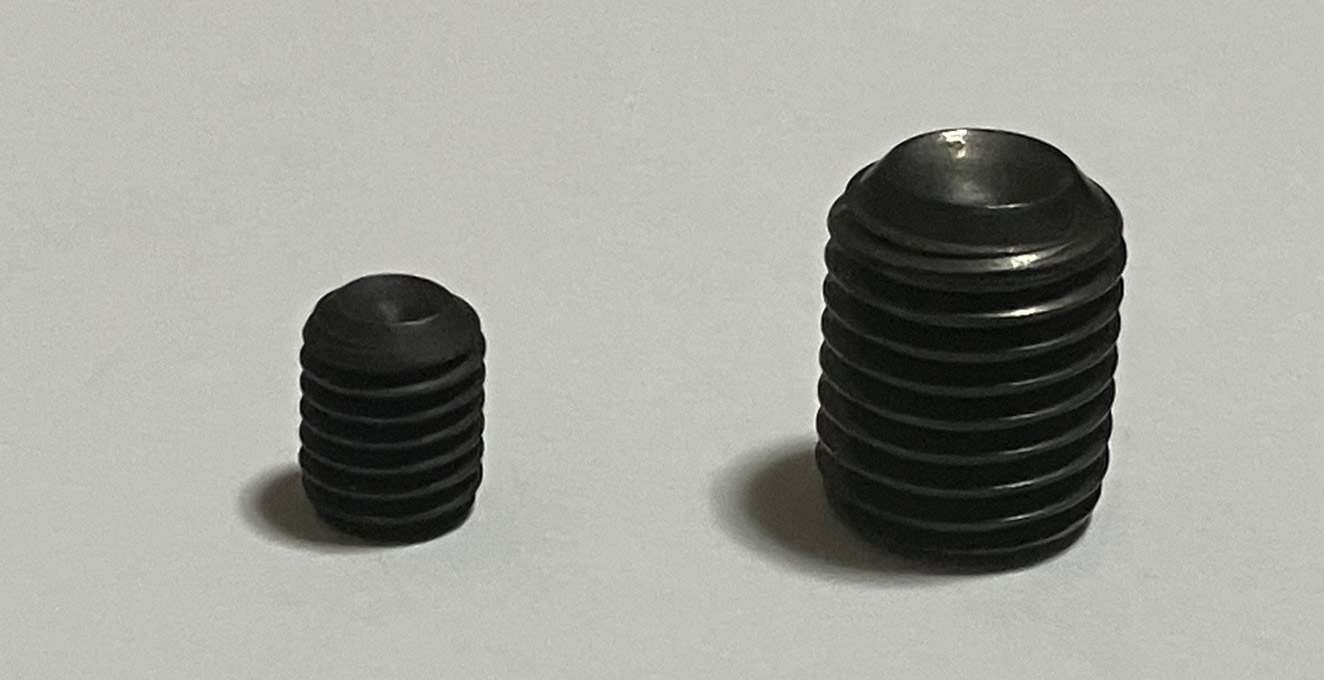

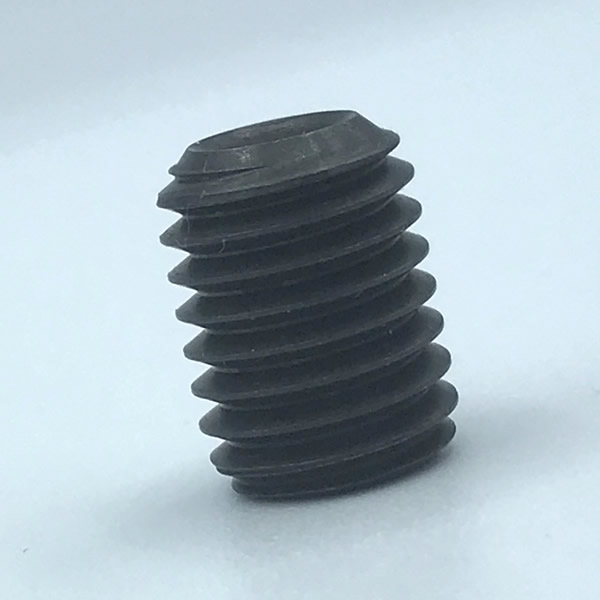

Hex socket set screws
(grub screws / hollow set screws / HS)

Hex socket set screws are commonly referred to as “imo-neji” or “horo-set” (hollow set) screws. They are sometimes abbreviated as “HS,” which stands for “horo-set.”
They lack a protruding head, consisting solely of a threaded body with a hexagonal socket; the tip is shaped according to the specific application.
They are primarily used for components such as pulleys, collars, and bearings, and are convenient for temporary fastening.

[Point Styles]
Cup point / Flat point / Dog point / Cone point / Double point
[Material Examples]
・SCM435 (Alloy steel)
・SUS XM7 (Stainless steel)
[Surface Treatment]
・Black oxide (Black oxide coating)
・Passivation

Upon request, we can also manufacture custom products (without heat treatment) using materials such as 10B21 (boron-added steel) or SAE1022.

Standard: DIN 913/914/915/916

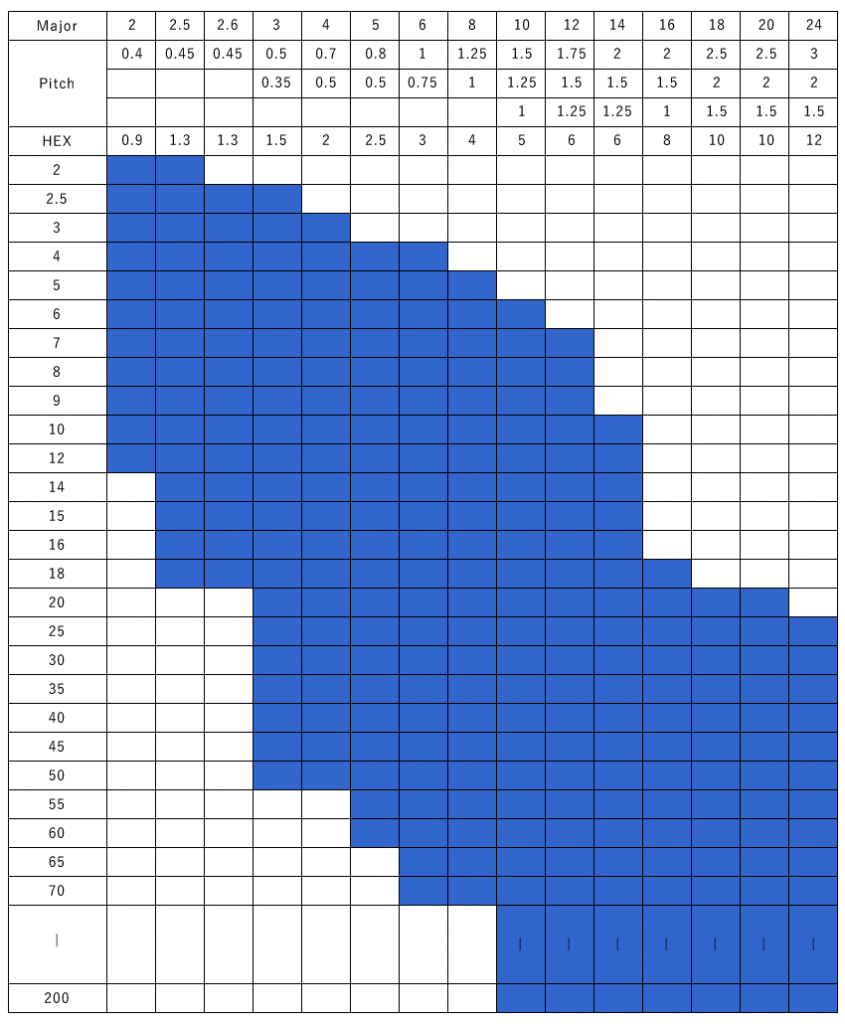

List of Available Sizes (Sections Marked in Blue)

By consulting with you regarding actual usage conditions, we can manufacture customized products tailored to your specific requirements.
This approach enables us to achieve a balance between quality and cost reduction. Please feel free to contact us.

Usage example
