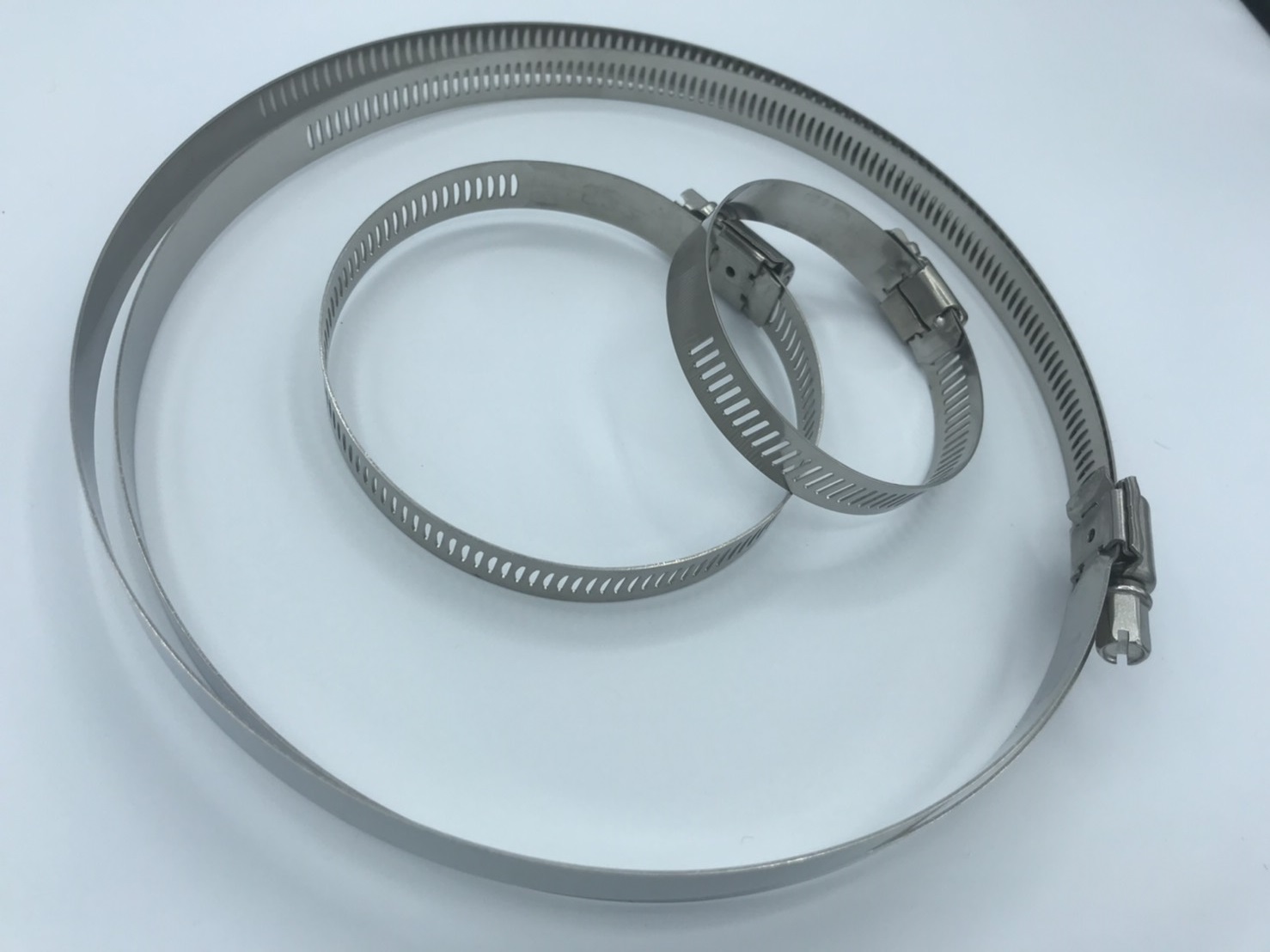

American-style hose clamp
Band width : 12.7mm, 14.2mm
Band thickness : 0.6mm
Material :
ALL 304 Stainless Steel
ALL 316 Stainless Steel
Usage example
For home application /For industrial application
| バンド幅：12.7mm | |||
| SAE | 締付範囲(mm) | SAE | 締付範囲(mm) |
| No. | 最低-最大 | No. | 最低-最大 |
| 10 | 14 – 27 | 56 | 78 – 101 |
| 12 | 18 – 32 | 64 | 91 – 114 |
| 16 | 21 – 38 | 68 | 97 – 120 |
| 20 | 21 – 44 | 72 | 105 – 127 |
| 24 | 27 – 51 | 80 | 118 – 140 |
| 32 | 40 – 63 | 88 | 130 – 152 |
| 40 | 52 – 76 | 96 | 143 – 165 |
| 48 | 65 – 89 | 104 | 155 – 178 |
| 52 | 71 – 95 | ||
Band width ： 14.2mm
Band thickness ： 0.65ｍｍ
Material:
ALL 304 Stainless Steel
ALL 316 Stainless Steel
Usage example :
For general industrial machine
For drainage system
For industrial pipe
| バンド幅：14.2mm | |||||
| SAE | 締付範囲(mm) | SAE | 締付範囲(mm) | SAE | 締付範囲(mm) |
| No. | 最低-最大 | No. | 最低-最大 | No. | 最低-最大 |
| 24 | 25 – 51 | 88 | 79 – 152 | 164 | 200 – 273 |
| 28 | 25 – 57 | 96 | 95 – 165 | 168 | 210 – 279 |
| 32 | 25 – 63 | 104 | 108 – 178 | 180 | 225 – 299 |
| 36 | 46 – 70 | 112 | 117 – 191 | 188 | 241 – 311 |
| 40 | 25 – 76 | 116 | 124 – 197 | 192 | 247 – 318 |
| 44 | 59 – 83 | 120 | 130 – 203 | 200 | 257 – 330 |
| 48 | 65 – 89 | 128 | 143 – 216 | 208 | 270 – 343 |
| 52 | 71 – 95 | 136 | 156 – 229 | 212 | 276 – 349 |
| 72 | 79 – 127 | 148 | 175 – 248 | 228 | 302 – 375 |
| 80 | 67 – 140 | 152 | 181 – 254 | 232 | 308 – 381 |
| 156 | 187 – 257 | 264 | 359 – 432 | ||
Usage example

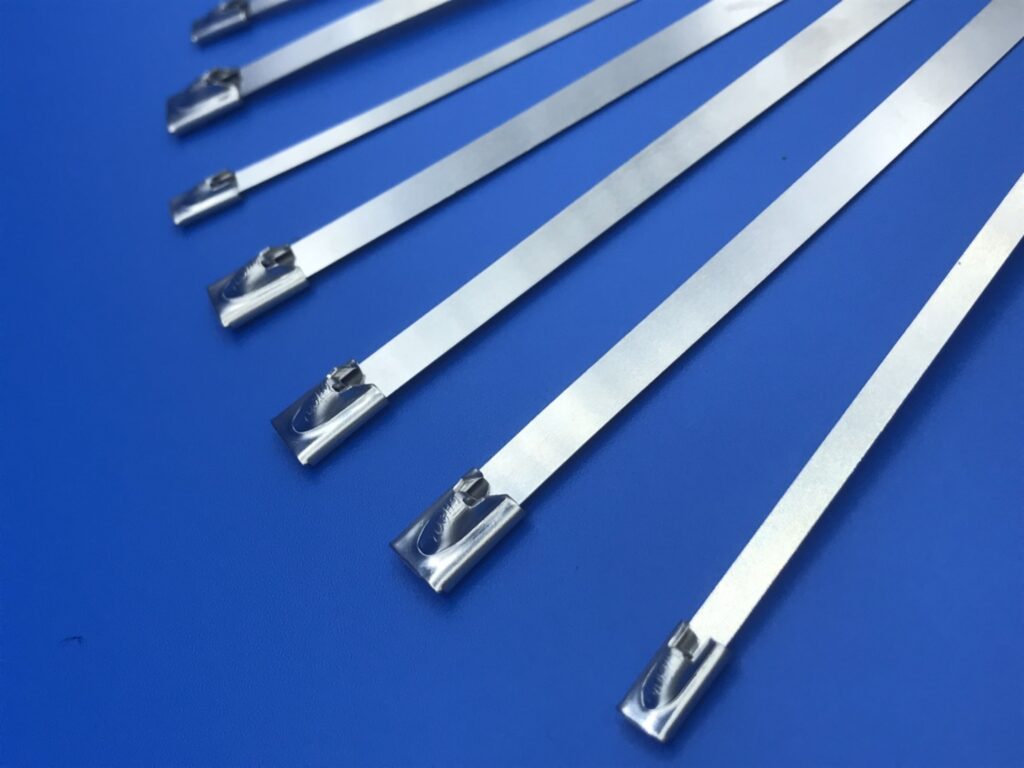

Stainless steel cable ties
The low-profile head allows for tightening in tight spaces (such as around piping) where standard housing-style hose clamps would not fit.
The ball-lock mechanism enables quick and easy tightening.
Using a dedicated tool makes tightening even easier.
We can adjust the cable tie length to meet your specific requirements, so please feel free to contact us.
材質：316ステンレス、304ステンレス
List of Available Sizes
| サイズ | 外径（ｍｍ） | サイズ | 外径（ｍｍ） |
| 4.6×12 | 30 | 7.9×152 | 33 |
| 4.6×152 | 33 | 7.9×201 | 50 |
| 4.6×201 | 50 | 7.9×266 | 72 |
| 4.6×266 | 72 | 7.9×300 | 81 |
| 4.6×30 | 81 | 7.9×362 | 102 |
| 4.6×362 | 102 | 7.9×521 | 152 |
| 4.6×521 | 152 | 7.9×679 | 203 |
| 4.6×679 | 203 | 7.9×838 | 254 |
| 4.6×838 | 254 | 7.9×1067 | 324 |
| 7.9×1194 | 365 |
Usage example

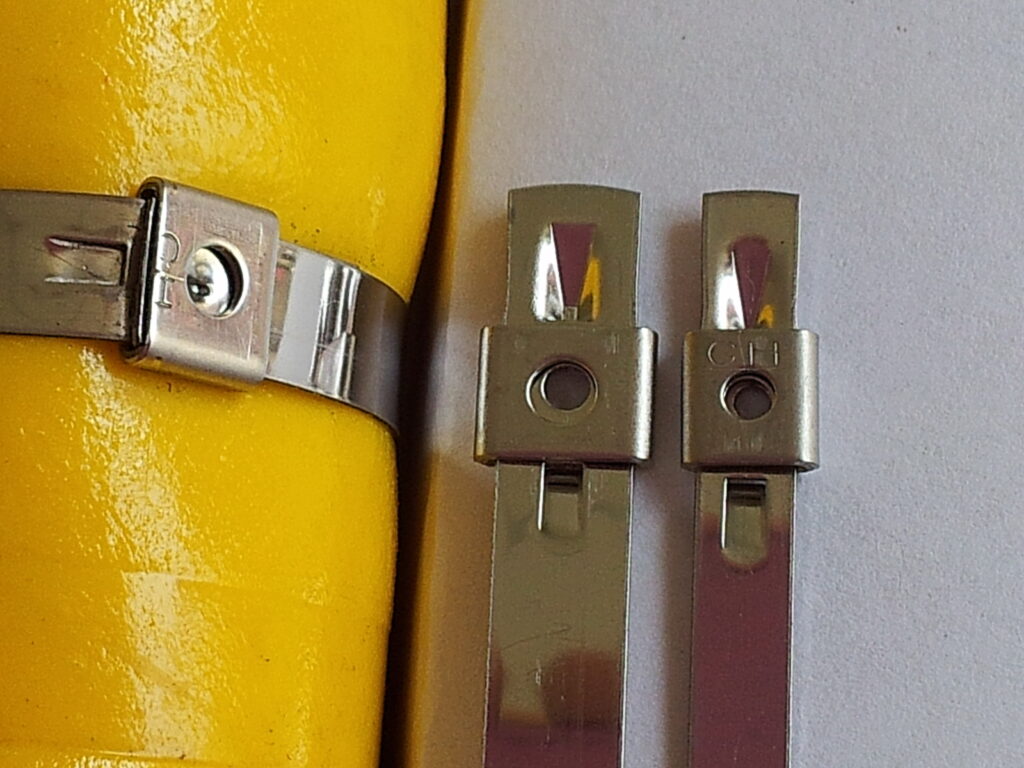

Smooth Punching Tie
The punched section is extremely thin, allowing for use even in locations with limited tightening space.
材質：304ステンレス
List of Available Sizes
| 幅（ｍｍ） | サイズ・長さ（ｍｍ） | 幅（ｍｍ） | サイズ・長さ（ｍｍ） |
| 4.5 | 165 | 6.3 | 254 |
| 4.5 | 254 | 6.3 | 419 |
| 4.5 | 406 | 6.3 | 572 |
| 4.5 | 572 | 6.3 | 737 |
| 4.5 | 737 | 6.3 | 889 |
Other Hose Clamps Offered

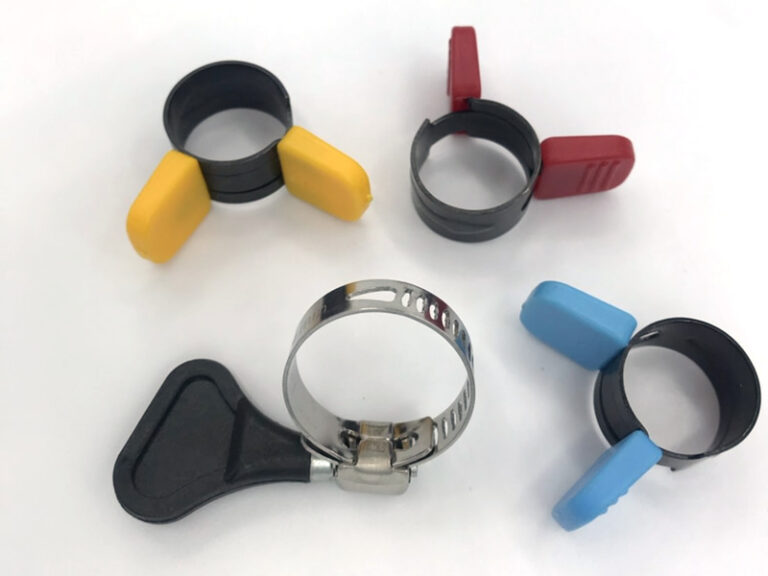

Hand-tightened clamp

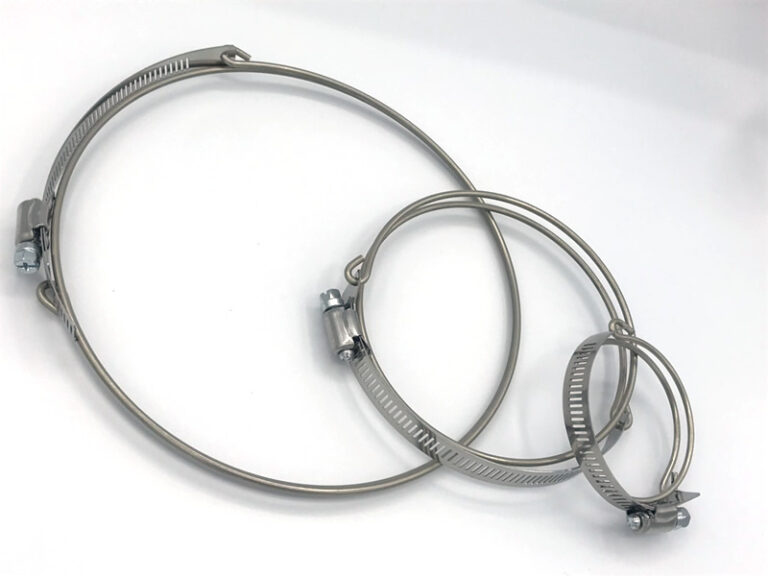

Wire clamp
